Nightshade (1985) is the first of Ultimate's Filmation II games. Where Knight Lore, Alien 8 and Pentagram show one room at a time, Nightshade's town scrolls: the knight stays in the middle of the screen and the streets move under him. It keeps the earlier games' tune player, menu, key reading, sprite rows and several sound routines, but the town, how it is drawn, how things move through it, the object records and the quest are all its own. This page is the game's outline: the tape and its protection, a turn of the main loop, the object records and how each is updated, and where everything is in memory.

The tape, and the four checks

The tape's BASIC loader loads a loading screen and then four blocks: the game, 34,816 bytes at $6000; 43 bytes into the printer buffer at LOADER; one byte into the system variable NMIADD at NMIADD; and two into FRAMES at $5C78. Then PRINT USR 23424 runs the routine in the printer buffer. It turns the interrupts off for good, sets bit 7 of the R register, and unscrambles the game block a pair of bytes at a time: RLD swaps a nibble between the two, so a pair loaded as ab cd (a nibble a letter) becomes ac db. Then it moves the block down 512 bytes to ENTRY and jumps there. The build does the same to the tape's block and checks that the result is what the snapshot holds.

Each of the three small blocks is a check the game makes on itself, and a copy that skips any of them does not play. A fourth check is aimed at players rather than copiers. Each was tried in the simulator when this page was built, by undoing what the tape did:

Check	Where	What the tape leaves	Undone in the simulator
FRAMES	START	FRAMES' middle byte $63. Interrupts are off from the loader on, so FRAMES never counts again	With the middle byte changed, START's RET went straight back to its caller, after 45 T-states. Left as the tape set it, the game went on into its menu
NMIADD	DISPATCH, for every object	$E9, JP (HL), in NMIADD. Every table of routines in the game is reached through a jump to it	With NMIADD zero, as the ROM leaves it, the game got as far as its first turn and never came round to a second: after five seconds of the game's time the processor was at $0074
R's bit 7	STOCK_BUILDINGS	R $BD: bit 7 set by the loader. The refresh counter counts only the low seven bits, so only a program's LD R,A can set it	With bit 7 clear, starting a game from the menu jumped to address 0: the Spectrum starts again from its copyright message. With it set, the game played
The lives	NEW_LIFE	the DEC (HL) that takes a life, at $CBDD, which each new life checks is still $35	With a NOP there, the obvious infinite-lives poke, the knight's first death jumped to address 0

The number of lives is hidden too: a new game takes it from the opcode of the JR that closes the main loop, at $BEDD: $18 shifted right twice is 6, and the first life takes one of them.

A turn

There is no clock in the game at all. Interrupts are off from the loader on, there is no HALT to wait for the television frame, and nothing counts time but the turns themselves. NEW_GAME sets a game up and falls into MAIN_LOOP, one turn, which goes round for as long as the game lasts:

1. Every object record is updated, the knight's legs first: its graphic picks a routine from UPDATES, called through DISPATCH with IX on the record, and the random number is stirred after each (NEXT_TURN).
2. The turn is counted. Unless the ending is playing: every sixteenth turn a find may appear in the knight's cell (SPAWN_FIND); every fourth, a monster round him (SPAWN_MONSTER); every 256th, the creature (SPAWN_CREATURE); a bonus when there is none (PLACE_BONUS); a note of any sound effect playing; and the carried things coloured on the panel (COLOUR_CARRIED).
3. The town and everything in it are drawn into the buffer (DRAW_CELLS; see how the town is drawn).
4. The knight is coloured by his hits, a new life started if his record has emptied (NEW_LIFE), and the game ended if the villains are gone (CHECK_QUEST_DONE).
5. END_OF_TURN: the buffers are copied to the screen and cleared (SHOW_PLAY_AREA), a villain's flash is kept for the next turn's colours and ended, and the pause key is read.

So a turn takes as long as it takes. Timed in the simulator when this page was built, 392 turns of walking (and now and then turning) in 49 cells spread across the town, in T-states:

Part of the turn	Least	Mean	Most
every record updated	24,241	37,342	100,608
the finds, monsters, creature and bonus; the sound effect's note; the panel's colours	566	1,272	3,200
the town and everything in it drawn into the buffer	69,355	172,741	288,888
the knight coloured; a new life; the end of the quest	818	818	818
the buffers copied to the screen and cleared	80,759	80,759	80,759
the flash ended; the pause key read	158	158	158
the whole turn	179,321	293,090	456,420

The mean turn is 84 milliseconds, about 12 turns a second; the quickest ran at 20 a second and the slowest at 7.7. The drawing is most of it, and it depends on how much of the town is built up round the knight: the game slows down among the buildings and speeds up in the open. Copying the buffers to the screen and clearing them costs exactly the same 80,759 every turn. Knight Lore, Alien 8 and Pentagram pad a quiet turn out with a delay (Alien 8); Nightshade has none.

The object records

Everything that moves is one of 23 records of 16 bytes from KNIGHT: half the size of the earlier games' records, since nothing in the town has a height or falls. Each kind of thing has its own records, and the order matters: a thrown object only ever looks for the villain four records on from its own, so the pairing of objects and villains is the order of the records (the quest).

Records	From	What
0	KNIGHT	the knight's legs	his whole update: the controls, turning, walking, throwing
1	KNIGHT_TOP	the knight's top	follows the legs; its own poses
2-3	ANTIBODIES	antibodies in flight	thrown by the knight
4-7	FINDS	finds in buildings	and, when a villain dies, its sparkles
8	BONUS	a bonus	a faster walk or the hits back
9-12	OBJECTS	the four objects	lying, carried (the record then empty) or thrown
13-16	VILLAINS	the four villains	each killed only by the object in the same place among the objects
17-22	MONSTERS	monsters	or the creature

The fields, as the update routines use them:

Offset	Field	What it is
+0	graphic	picks the update routine (UPDATES) and the sprite (GRAPHICS); 0 is an empty record
+1, +2	U	the high byte the town's column, the low byte the place across the cell
+3, +4	V	the same: the high byte the row
+5	speed	units a turn along the facing; a find keeps the type of cell it came from here
+6	facing	bits 6-7: $00 +V, $40 +U, $80 -V, $C0 -U; the low bits a count -- the knight's turn delay, a monster's turns to its next change of course
+7	flags	bit 0 stopped by a wall this turn, bit 1 drawn this turn, bit 5 heads for the knight, bit 6 mirrored, bit 7 upside down (never set)
+8, +9	half-sizes	how far it reaches from its centre along U and along V
+A, +B	step	this turn's move along U and V, signed
+C, +D	drawing offset	added to where its centre projects, for the sprite's bottom left corner
+E, +F	where drawn	the pixel x and y it was drawn at

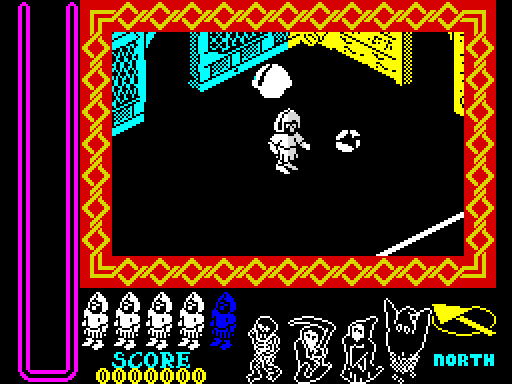

One turn of real play, the knight walked about a built-up part of the town from cell (9,23) and the turn with the most records in use out of 240 traced: every record, in the order the main loop takes them, with its graphic, the routine that graphic picks, and the T-states that routine took. An empty record costs the jump to NO_UPDATE, which returns at once. The sounds are played inside the updates, and nothing else happens while they play: record 22, a monster appearing on the screen, spent 35,741 T-states on its note (APPEAR_SOUND).

Record	Address	Graphic	Update routine	T-states
0	$BC8E	29	UPDATE_KNIGHT	1,701
1	$BC9E	45	TOP_FOLLOWS	517
2	$BCAE	0	NO_UPDATE	125
3	$BCBE	0	NO_UPDATE	125
4	$BCCE	0	NO_UPDATE	125
5	$BCDE	0	NO_UPDATE	125
6	$BCEE	0	NO_UPDATE	125
7	$BCFE	0	NO_UPDATE	125
8	$BD0E	3	HITS_BONUS	799
9	$BD1E	7	OBJECT_LYING	416
10	$BD2E	6	OBJECT_LYING	416
11	$BD3E	5	OBJECT_LYING	416
12	$BD4E	4	OBJECT_LYING	416
13	$BD5E	108	VILLAIN_WANDER	4,029
14	$BD6E	104	VILLAIN_WANDER	3,989
15	$BD7E	100	VILLAIN_WANDER	2,502
16	$BD8E	96	VILLAIN_WANDER	4,029
17	$BD9E	122	MONSTER112_UPDATE	4,590
18	$BDAE	72	WANDERING_MONSTER	4,125
19	$BDBE	72	WANDERING_MONSTER	4,331
20	$BDCE	122	MONSTER112_UPDATE	4,591
21	$BDDE	120	MONSTER112_UPDATE	2,851
22	$BDEE	128	APPEARING_UPDATE	35,741

Graphics and their routines

The graphic number is the whole of a record's kind: UPDATES gives each of the 158 graphics its update routine, and a thing changes what it is by changing its graphic -- a monster appearing counts up through 128-131 and then becomes a monster, anything destroyed becomes graphic 12, the start of a puff. The graphics come in runs of four frames or directions, and a run shares a routine:

Graphics	Update routine
0-1	NO_UPDATE
2	SPEED_BONUS
3	HITS_BONUS
4-7	OBJECT_LYING
8-11	OBJECT_FLIGHT
12-15	VANISHING
16-21	UPDATE_KNIGHT
22	UPDATE_TOP
23	NO_UPDATE
24-29	UPDATE_KNIGHT
30	UPDATE_TOP
31	NO_UPDATE
32-47	TOP_FOLLOWS
48-63	FIND_WANDER
64-79	WANDERING_MONSTER
80-95	ANTIBODY_FLIGHT
96-111	VILLAIN_WANDER
112-127	MONSTER112_UPDATE
128-131	APPEARING_UPDATE
132-135	VILLAIN_DYING
136-139	CREATURE_UPDATE
140-143	SPARKLE_FLY
144-151	ENDING_VILLAIN
152	ENDING_PIT_FRONT
153-157	ENDING_PICTURE

Every table of routines is reached the same way: DISPATCH looks the address up and jumps not to it but to NMIADD, where the tape's JP (HL) makes the jump. Besides UPDATES there are five small tables: what an antibody does to a monster (MONSTER_HIT_TABLE), the depth sort's outcomes (DEPTH_TABLE), and three by the knight's or a walker's facing -- coming to a stop (COAST_TABLE), turning towards the knight (TURN_TO_KNIGHT_TABLE) and stopping at the walls (MOVE_TABLE).

Where everything is

From	To	Bytes	What
PRINTER_BUFFER	$5BFF	256	the printer buffer, with the loader's routine at LOADER
SYSTEM_VARIABLES	$5CCA	203	the system variables, two of them set by the tape: FRAMES and NMIADD
BASIC_PROGRAM	$5DFF	309	what is left of the BASIC loader, and the game's stack, which grows down into it
ENTRY	$5E03	4	the entry
TOWN	$6203	1,024	the town map: 32 rows of 32 cells, a byte each
DRAW_ORDER	$62A3	160	the drawing order: 32 records of five steps
BUILDING_TABLE	$6575	722	the building table, the box table and the boxes, and the edge picture under each tile
BUILDING14	$6CB5	1,856	the building definitions: two faces of eight columns of two tiles each
PANEL_CHARS	$7016	865	the panel's frame, the font, the tile and graphic tables, the edge pictures
SPRITE152	$A256	12,864	the sprites, with the carried things' pictures and the panel's icons among them
TILE0	$BB09	6,323	the tiles the buildings are drawn from
BORDER_CHARS	$BBA9	160	the border's characters
RANDOM	$BC8D	228	the variables
$BC8E	$BDFD	368	the 23 object records
START	$E5C3	10,182	the code, with the notes and tunes, the menu, the text and the record templates in it
BUFFER	$F043	2,688	the play area's pixel buffer: 112 lines of 24 bytes
ATTR_BUFFER	$F193	336	its attribute buffer: 14 rows of 24
ATTR_SPILL	$F1FF	108	a byte the colour fill spills into, and unused bytes
MIRROR_TABLES	$F7FF	1,536	tables for drawing mirrored at an even pixel, built at a new game
UNUSED_F800	$F8FF	256	unused
REVERSE_TABLE	$F9FF	256	every byte reversed
SHIFT_TABLES	$FFFF	1,536	tables for drawing shifted by 2, 4 and 6 pixels

The game's code runs from START to $E5C3; below it are the level data and the graphics, above it the buffers and the tables it builds at every new game (MAKE_TABLES). The stack is set once, at START, below the game, and is never set again: every game over leaves two bytes on it and every ending four, since those are jumped into from routines that were called. After 156 game overs in one sitting it has crept down over NMIADD and the game crashes (measured by stage 2 of this disassembly; see START).

Beside the earlier games

	Knight Lore, Alien 8, Pentagram	Nightshade
The world	rooms of blocks, one at a time	a scrolling town of 32 by 32 cells (TOWN)
Heights	everything has a Z, and falls	none
Object records	40, 56 and 54 records of 32 bytes (Knight Lore, Alien 8)	23 of 16
Drawing	only what changed, redrawn in rectangles	the whole play area every turn
Pacing	a delay pads out a quiet turn	none: a turn takes what it takes
Dispatch	JP (HL) in the code	JP (HL) in NMIADD, loaded from the tape

Confirmed and inferred

• Run in the simulator when this page was built: the four checks, each undone in turn; the timing of a turn's parts; the records of a busy turn.
• Read from the code: the load and the unscrambling (and checked by the build against the tape every time); the turn's order; the records' fields; the lives from the JR's opcode.
• Inferred: that the lives byte was chosen as a guard; nothing says so, but it works as one.
